LONG LOADER

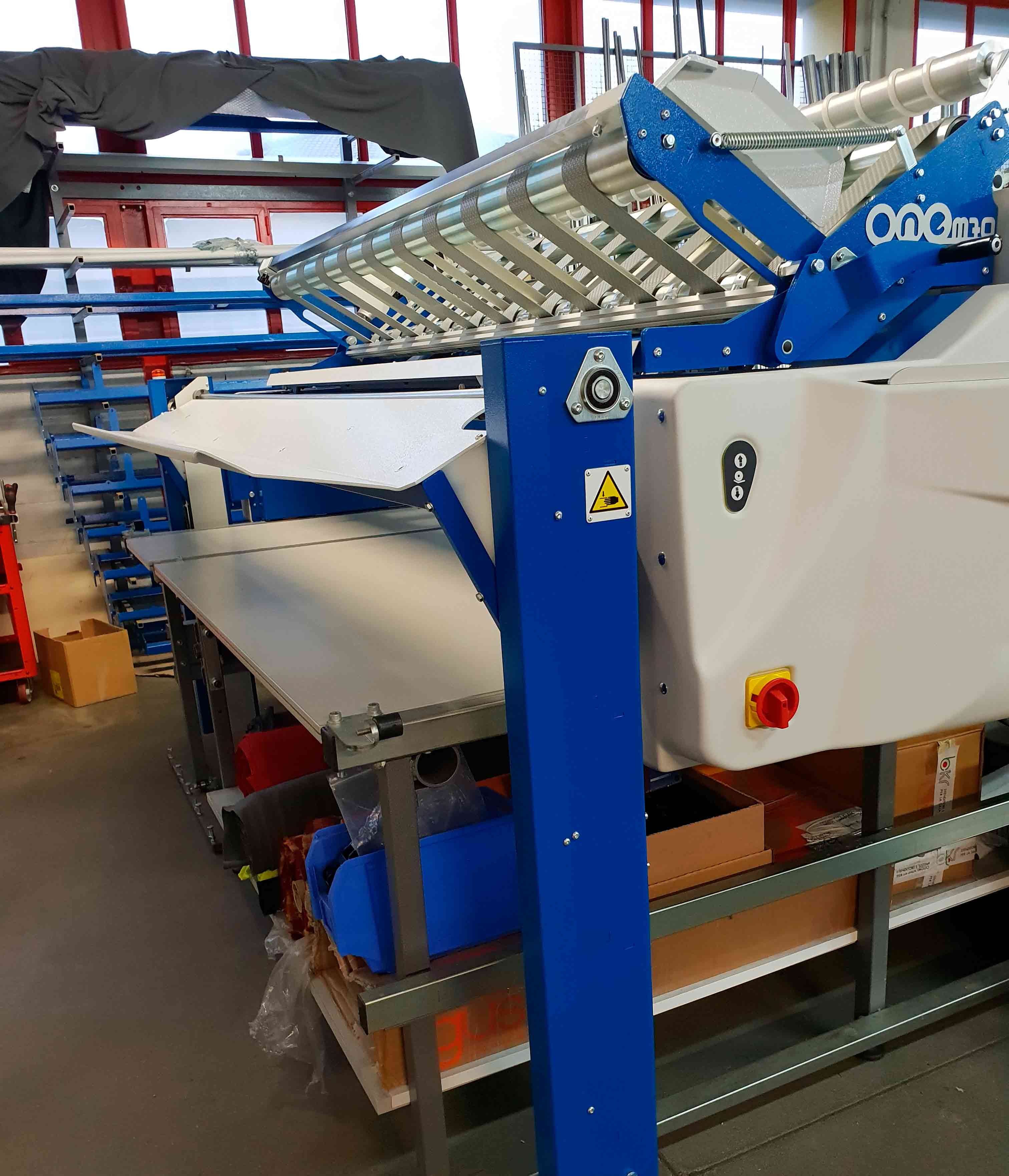

Tough and multifunctional loader. It is incorporated into the machine and enables rolls of fabric up to a maximum weight of 70 kg to be lifted that has a maximum diameter of 60 cm.

The special feature of this loader is its ability to lift fabric rolls from the work surface of the spreading table or, when the spreader is at the end of the table, up to 30 cm from the ground.

The LONG loader has also been designed to permit lateral loading of the fabric rolls when there is little space in the loading zone or when loading in different positions is required along the spreading table, also in the presence of lays that are already spread.

STANDARD CONFIGURATION CHARACTERISTCS

  • Usable clearance (piece height): 160 cm, 180 cm, 200 cm, 220 cm
  • Roll maximum diameter: 60 cm
  • Roll maximum weight: 70 kg
  • Maximum spreading height: 25 cm
  • Power supply: 400V – 50 Hz
  • Maximum spreading speed: 100 m/min
  • 4-wheel chain drive
  • Hybrid man-machine interface (touch screen plus potentiometers)
  • Cutter with separate blade motors and transport and with possibility of selecting cutting type: one-directional, two-directional, one directional with programmable length
  • Unrolling of fabric with electronic control of speed and rate
  • Electronically controlled variable position cradle
  • Automatic control of lay height by photocell
  • Possibility of programming lay length by self-teach or from panel
  • Possibility of programming sheets to be made
  • Partial and total metre counter
  • Operator platform
  • Movable gripper

ADDITIONAL CONFIGURATION CHARACTERISTCS

  • Enhanced usable clearance: 300 cm, 320 cm, 340 cm
  • Other clearance on request
  • Loader on machine with 70 kg maximum lift
  • Loader from ground with 70 kg maximum lift
  • Maximum spreading height reduction: 14 cm
  • Kit for spreading in lapping mode
  • Machine support kit for spreading lapped fabrics
  • Device for lapped fabrics
  • Fabric alignment kit
  • Paper holder for movable gripper
  • Fixed arm kit for roll, Ø 60 cm/weight 50 kg
  • Size program kit (20 sizes-200 colours) plus SW20200-01 software



   ONE S70 DOWNLOAD





Category:

Description

Supply voltage: 400 V three-phase
Max. absorbed power: 3 Kw
Fabric feeding: electronic
Drive: chain/four wheel
Operation: automatic/semiautomatic
Maximum spreading speed: 100 m/min
Roll maximum diameter: 60 cm
Roll maximum weight: 70 Kg



Spreading height:
Cut 25 cm
Lapping 23 cm



Machine weight:
P.U. 160 180 200 220 300 320
Kg 430 450 470 490 600 625
