ONE S70 SPREADER
The jewel in the crown of the ONE line, this spreader model, owing to the infinite possibility of configurations, is the most suitable machine for most fabrics and processes.
In the design of this spreader, we stressed its high technical content without sacrificing the reliability and ease of use that have always distinguished our product line. ONE S70 is compatible with 4.0 technology and the implementation of the SW 20/200 sizes/colours programme qualifies it in Italy for hyper depreciation tax breaks.
STANDARD CONFIGURATION CHARACTERISTCS
- Usable clearance (piece height): 160 cm, 180 cm, 200 cm, 220 cm
- Roll maximum diameter: 60 cm
- Roll maximum weight: 70 kg
- Maximum spreading height: 25 cm
- Power supply: 400V – 50 Hz
- Maximum spreading speed: 100 m/min
- 4-wheel chain drive
- Hybrid man-machine interface (touch screen plus potentiometers)
- Cutter with separate blade motors and transport and with possibility of selecting cutting type: one-directional, two-directional, one directional with programmable length
- Unrolling of fabric with electronic control of speed and rate

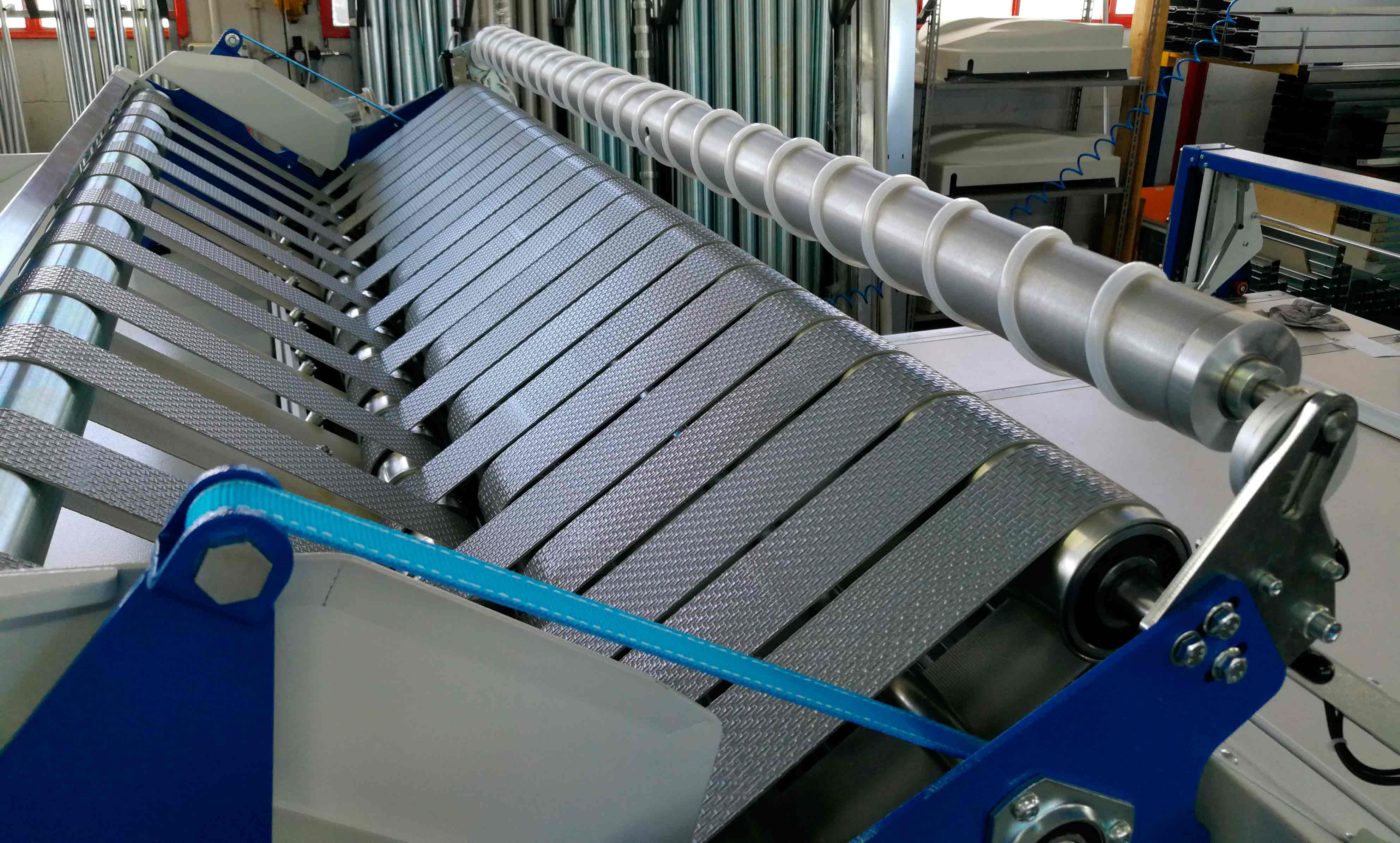

- Electronically controlled variable position cradle
- Automatic control of lay height by photocell
- Possibility of programming lay length by self-teach or from panel
- Possibility of programming sheets to be made
- Partial and total metre counter
- Operator platform
- Movable gripper
ADDITIONAL CONFIGURATION CHARACTERISTCS
- Enhanced usable clearance: 300 cm, 320 cm, 340 cm
- Other clearance on request
- Loader on machine with 70 kg maximum lift
- Loader from ground with 70 kg maximum lift
- Maximum spreading height reduction: 14 cm
- Kit for spreading in lapping mode
- Machine support kit for spreading lapped fabrics
- Device for lapped fabrics
- Fabric alignment kit
- Paper holder for movable gripper
- Fixed arm kit for roll, Ø 60 cm/weight 50 kg
- Size program kit (20 sizes-200 colours) plus SW20200-01 software
